12x10x7m stage truss with side wing 2.5m

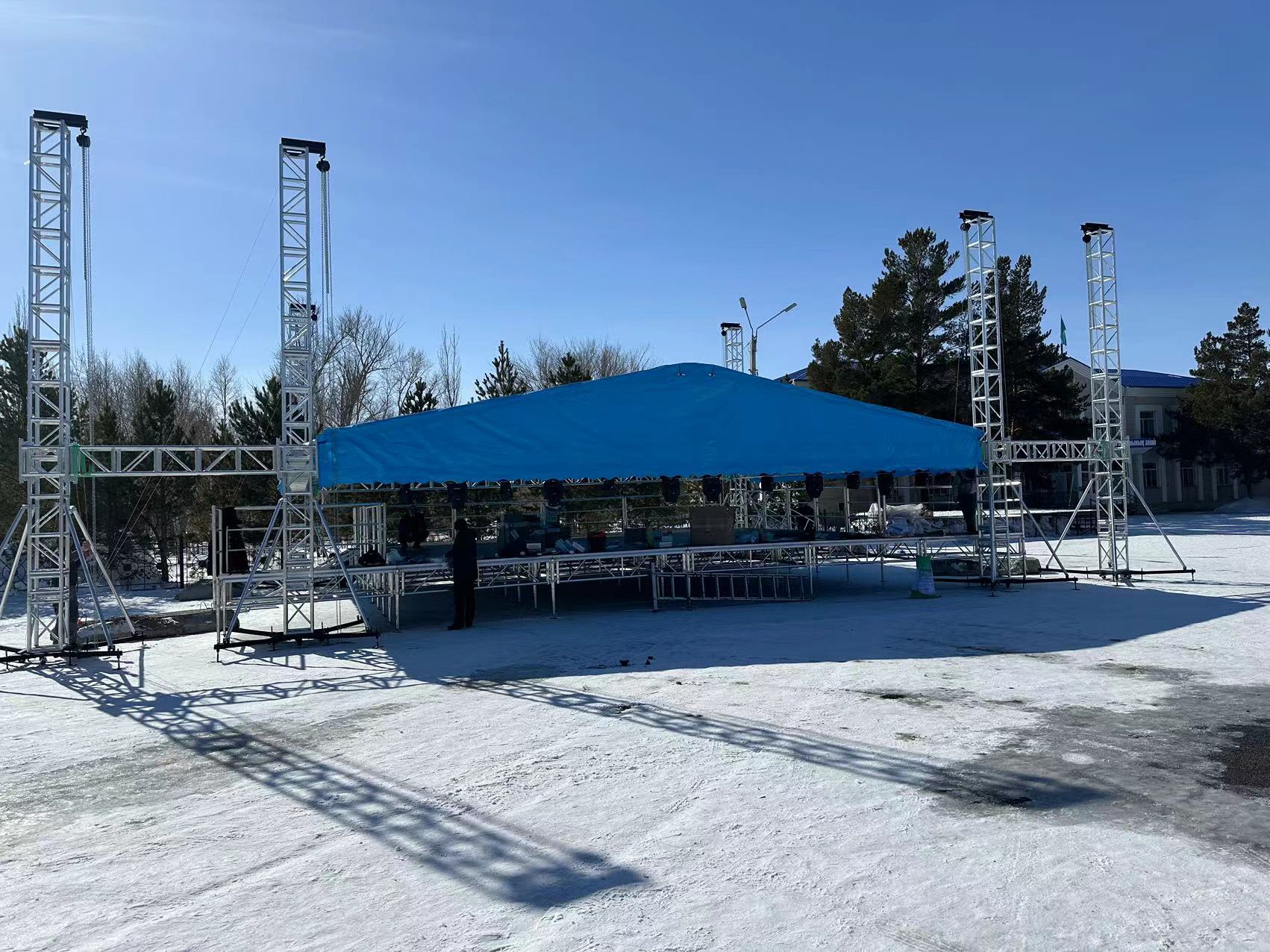

Thank you very much to the customer for providing us with the truss case video and give us his feedback on our truss and stage.

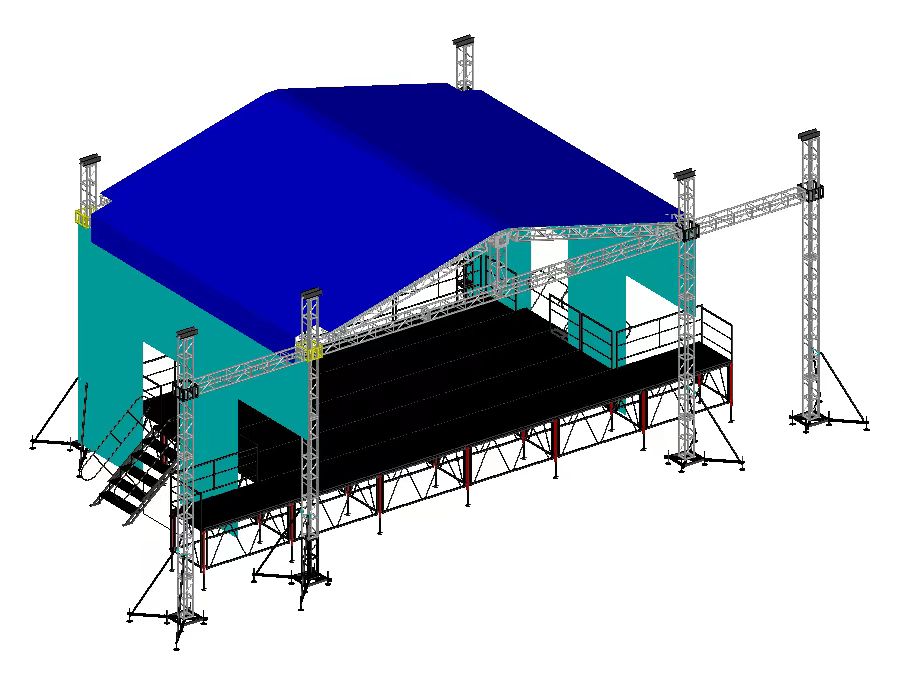

For the stage truss, size is 12m width, 10m depth and 7m height, side wing 2.5m.

Pillar is 300x300mm bolt truss , TIG welding with welding bar R5356, welding over 5mm , material is aluminum 6061 T6, main chord is 50*3mm

Beam is 400x400mm bolt truss, TIG welding, with welding bar R5356, welding over 5mm , material is aluminum 6061 T6, main chord is 50*3mm

Aluminum stage, unit size is 1.22x2.44m, height is 1.5-2m, We narrowed the tolerance, Increases the difficulty of the process, but the structure is more stable and safer

If you want to know the details, please feel free to contact with us.

Thanks & best regards,

Andy

Guangzhou Biel Stage Technology Co.,Ltd
